Cartridge Type Filter Unit

Cartridge Type Filter Unit

Being tubular filtration equipment, Cartridge Type Filter Unit can be used across various industries for catering to a wide range of filtration requirements. Comprises with housing or casing, it helps eliminate pollutants, contaminants and chemicals from liquids. Soltech Pumps & Equipment Pvt Ltd is one of the counted Cartridge Type Filter Unit Manufacturers In Delhi. Our Cartridge Filtration Unit is as per the industry norms and our Filter System is available in many sizes, shapes, finish, and other specifications.

Characteristics Of Our Cartridge Type Filter Units:

  • Available in various lengths, diameters and construction materials.
  • Appreciated for its durability, optimum strength and long service life.
  • Able to handle extreme pressure for increased stability during operations.
  • Its design has depth and thickness that enable Cartridge Filter Unit to trap more solids that are not visible through naked eyes.
  • Cartridge Filter Units are best for Sand Blasting, Food Processing, Cattle Feed & Grain Handling etc.

Call Our Experts Now!

We are one of the trusted Cartridge Type Filter Unit Exporters and Suppliers In India. We are loaded with the best resources and strictly follow industry norms to deliver the best Filter Unit to end-users. Call us or drop your enquiry to know more.

Send Enquiry

Specification

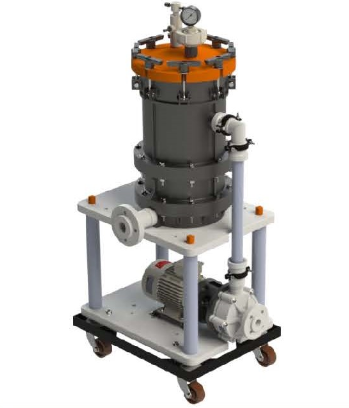

CFU 200 GF
CFU 200 GF
M.O.C. — Chamber Moulded GF PP
No. Of Cartridge In Chamber 5
Cartridge length 10"
M.O.C. - Cartridge P.P.
Max. Pressure 1.2 kg/mtr2
Max. Operating Temp. 60 °C
Max. Capacity 6000 Ltr / hr
Pump Model DMP 100 IMS
CFU 200 GF DUPLEX
CFU 200 GF DUPLEX
M.O.C. — Chamber Moulded GF PP
No. Of Cartridge In Chamber 5 + 5
Dia. Of Plates 10"
M.O.C. - Plates P.P.
Max. Pressure 1.2 kg/mtr2
Max. Operating Temp. 60 °C
Max. Capacity 12000 Ltr / hr
Pump Model DMP 200 IMS
CFU 300 GF

CFU 300 GF

M.O.C. — Chamber Moulded GF PP
No. Of Cartridge in chamber 12
Cartridge length 20"
M.O.C. - Cartridge P.P
Max. Pressure 1.6 kg/cm2
Max. Operating Temp. 60 °C
Max. Capacity 10000 Ltr/hr
Pump Model DMP 200 IMS

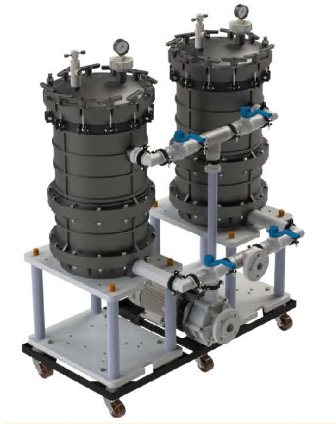

CFU 300 GF DUPLEX

CFU 300 GF DUPLEX

M.O.C. — Chamber Moulded GF PP
No. Of Cartridge in chamber 12 + 12
Cartridge length 20"
M.O.C. - Cartridge P.P.
Max. Pressure 1.6 kg/cm 2
Max. Operating Temp. 60 °C
Max. Capacity 20000 Ltr/hr
Pump Model DMP 300 IMS
CFU 400 GF

CFU 400 GF

M.O.C. — Chamber

Moulded GFPP
No. Of Cartridge In Chamber 16
Cartridge length

30"

Max. Pressure

1.8 kg/m 2

Max. Operating Temp.

60 °C

Max. Capacity

20000 L tr/hr

Pump Model DMP 300 IMS
